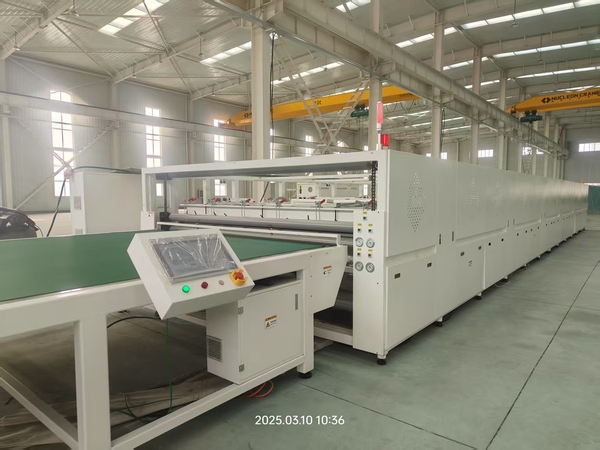

光伏層壓機加熱系統與壓力系統技術特點解析

一、加熱系統：精準控溫與高效傳熱的核心(I. Heating System: Core of Precise Temperature Control and Efficient Heat Transfer)

加熱方式與介質選擇(Heating Methods and Medium Selection)

油加熱系統：以導熱油為介質，通過熱油循環實現加熱板均勻升溫。其優勢在于溫度穩定性高（波動≤±2℃），但升溫速度較慢（約10-15分鐘），且單個腔室測溫點位較少（通常5個），可能影響局部溫度均勻性。

Oil heating system: Uses thermal oil as the medium, achieving uniform heating plate temperature through hot oil circulation. Its advantages are high temperature stability (fluctuation ≤±2℃), but heating speed is slower (approx. 10-15 mins), and single-chamber temperature measurement points are fewer (usually 5), potentially affecting local temperature uniformity.

電加熱系統：采用電阻絲或加熱棒直接嵌入加熱板，通過電能轉化實現快速升溫（5-8分鐘），且溫度控制更精準（PID算法閉環控制）。電加熱設備單個腔室設計多達40個控溫點位，確保溫度均勻性≤±1℃，適用于對工藝參數敏感的材料（如薄片電池、柔性組件）。

Electric heating system: Uses resistance wires or heating rods directly embedded in the heating plate, achieving rapid heating (5-8 mins) through electrical energy conversion, with more precise temperature control (PID algorithm closed-loop control). Electric heating equipment designs up to 40 temperature control points per chamber, ensuring temperature uniformity ≤±1℃, suitable for materials sensitive to process parameters (e.g., thin-film cells, flexible modules).

遠紅外加熱系統：部分高端機型采用高真空短波遠紅外電加熱管，直接輻射加熱鋁合金層壓板，熱效率提升20%以上，能耗降低15%，同時減少熱量散失，適用于大規模生產線。

Far-infrared heating system: Some high-end models use high-vacuum short-wave far-infrared electric heating tubes to directly radiate heat onto aluminum alloy laminating plates. Thermal efficiency increases by over 20%, energy consumption decreases by 15%, and heat loss is reduced. Suitable for large-scale production lines.

結構與材料優化(Structure and Material Optimization)

加熱板采用高導熱性鋁合金或銅合金材質，結合循環導熱油或電加熱模塊，確保熱量均勻傳遞。

Heating plates use high thermal conductivity aluminum alloy or copper alloy materials, combined with circulating thermal oil or electric heating modules, ensuring uniform heat transfer.

電加熱系統通過優化加熱元件布局（如分區控制、密度梯度設計），進一步縮小溫度差異，避免局部過熱導致EVA膠膜降解或電池片隱裂。

Electric heating systems further minimize temperature differences by optimizing heating element layout (e.g., zone control, density gradient design), avoiding local overheating that causes EVA film degradation or cell micro-cracks.

控制策略(Control Strategy)

支持多段溫度曲線設置（如預熱、層壓、固化階段），滿足不同材料（如單晶硅、薄膜電池）的工藝需求。

Supports multi-stage temperature curve settings (e.g., preheating, laminating, curing stages) to meet the process requirements of different materials (e.g., monocrystalline silicon, thin-film cells).

配備溫度傳感器與PID控制器，實時監測并調整加熱功率，確保溫度穩定性。

Equipped with temperature sensors and PID controllers to monitor and adjust heating power in real-time, ensuring temperature stability.

二、壓力系統：均勻施壓與動態控制的關鍵(II. Pressure System: Key to Uniform Pressure Application and Dynamic Control)

動力源選擇(Power Source Selection)

液壓系統：以液壓油為介質，通過液壓泵加壓后輸送至壓力缸，提供穩定、精確的大壓力（可達數千噸），適用于大型工業層壓機。其優勢在于壓力控制精度高（偏差≤±1%），保壓性能好（數小時內壓力波動≤±2%），且可實現多缸同步運動，確保壓板平行度。

Hydraulic system: Uses hydraulic oil as the medium, pressurized by a hydraulic pump and delivered to pressure cylinders, providing stable and precise high pressure (up to thousands of tons). Suitable for large industrial laminators. Advantages include high pressure control accuracy (deviation ≤±1%), good pressure retention performance (pressure fluctuation ≤±2% over several hours), and enabling multi-cylinder synchronous movement to ensure platen parallelism.

氣動系統：利用壓縮空氣作為動力源，結構簡單、成本較低，但壓力穩定性稍差（偏差≤±5%），適用于小型實驗室層壓機或對壓力要求不高的場景。

Pneumatic system: Uses compressed air as the power source. Simple structure and lower cost, but pressure stability is slightly inferior (deviation ≤±5%). Suitable for small laboratory laminators or scenarios with lower pressure requirements.

壓力施加與保壓機制(Pressure Application and Retention Mechanism)

壓力缸與活塞組合將動力轉化為對材料的擠壓力，通過調節活塞運動速度和壓力大小，實現均勻施壓（壓力分布均勻性提升30%）。

The combination of pressure cylinders and pistons converts power into compressive force on the material. Uniform pressure application (pressure distribution uniformity increased by 30%) is achieved by adjusting piston movement speed and pressure magnitude.

采用高性能密封件和保壓回路，減少壓力泄漏，確保長時間保壓（如層壓階段持續10-15分鐘）時壓力穩定。

High-performance seals and pressure retention circuits are used to reduce pressure leakage, ensuring pressure stability during prolonged pressure holding (e.g., 10-15 minutes during the laminating stage).

動態控制與安全設計(Dynamic Control and Safety Design)

支持壓力分段調節（快、中、慢三檔），適應不同材料（如玻璃、背板）的層壓需求。

Supports pressure segmented adjustment (fast, medium, slow three stages) to adapt to laminating requirements for different materials (e.g., glass, backsheets).

配備壓力傳感器與控制器，實時監測壓力值并自動調整，避免過壓導致組件損壞。

Equipped with pressure sensors and controllers to monitor pressure values in real-time and automatically adjust, avoiding overpressure that damages components.

安全裝置包括過載保護、壓力安全閥、行程限位開關等，防止設備因異常壓力而損壞。

Safety devices include overload protection, pressure relief valves, stroke limit switches, etc., preventing equipment damage due to abnormal pressure.

三、加熱與壓力系統的協同作用(III. Synergistic Effect of Heating and Pressure Systems)

工藝流程優化(Process Flow Optimization)

在抽真空階段，加熱系統預熱材料至軟化點（如EVA膠膜熔化溫度60-80℃），同時壓力系統保持低壓狀態以排除氣泡。

During the vacuum stage, the heating system preheats materials to the softening point (e.g., EVA film melting temperature 60-80℃), while the pressure system maintains low pressure to eliminate bubbles.

在層壓階段，加熱系統維持目標溫度（如140-150℃），壓力系統逐步升壓至設定值（如0.5-1.0MPa），確保材料緊密結合。

During the laminating stage, the heating system maintains the target temperature (e.g., 140-150℃), and the pressure system gradually increases pressure to the set value (e.g., 0.5-1.0MPa), ensuring tight bonding of materials.

在固化階段，加熱系統降溫至固化溫度（如80-100℃），壓力系統保持保壓狀態，促進分子間作用力增強，提高組件穩定性。

During the curing stage, the heating system cools down to the curing temperature (e.g., 80-100℃), and the pressure system maintains the holding pressure, promoting enhanced intermolecular forces and improving component stability.

數據交互與閉環控制(Data Interaction and Closed-loop Control)

加熱系統與壓力系統通過PLC或工業計算機實現數據交互，根據工藝參數自動調整溫度與壓力曲線。

The heating and pressure systems achieve data interaction via PLC or industrial computers, automatically adjusting temperature and pressure curves based on process parameters.

例如，在層壓薄片電池時，系統可降低加熱溫度并縮短保壓時間，避免電池片破裂；在層壓柔性組件時，系統可減小壓力并增加抽真空時間，確保材料充分貼合。

For example, when laminating thin cells, the system can lower heating temperature and shorten holding time to avoid cell breakage; when laminating flexible modules, the system can reduce pressure and increase vacuum time to ensure full material adhesion.

四、實驗室光伏層壓機的技術趨勢(IV. Technological Trends in Laboratory PV Laminators)

模塊化與集成化設計(Modular and Integrated Design)

加熱板與壓力缸采用模塊化結構，便于快速更換與維護，降低停機時間。

Heating plates and pressure cylinders adopt a modular structure, facilitating quick replacement and maintenance, reducing downtime.

集成真空泵、溫度控制器、壓力傳感器等核心部件，減少設備占地面積（如SST-PV-CY700型層壓機占地約1.6㎡）。

Integrates core components like vacuum pumps, temperature controllers, and pressure sensors, reducing equipment footprint (e.g., SST-PV-CY700 laminator occupies approx. 1.6㎡).

智能化與自動化升級(Intelligence and Automation Upgrade)

配備觸摸屏操作界面，支持工藝參數存儲與調用（如存儲10種以上溫度曲線），簡化實驗流程。

Equipped with touch screen operation interface, supports storage and recall of process parameters (e.g., storing over 10 temperature curves), simplifying experimental procedures.

通過MES接口實現設備聯網，上傳運行數據至制造執行系統，支持遠程監控與故障診斷。

Enables equipment networking via MES interface, uploading operational data to the Manufacturing Execution System (MES), supporting remote monitoring and fault diagnosis.

節能與環保優化(Energy Saving and Environmental Optimization)

電加熱系統采用節能算法，根據材料特性動態調整加熱功率，降低能耗20%以上。

Electric heating systems use energy-saving algorithms to dynamically adjust heating power based on material characteristics, reducing energy consumption by over 20%.

遠紅外加熱系統減少熱量散失，配合真空泵變頻控制，進一步降低運行成本。

Far-infrared heating systems reduce heat loss, combined with vacuum pump variable frequency control, further lowering operating costs.
