太陽能光伏組件全自動裝框機特點

太陽能光伏組件全自動裝框機作為光伏組件生產中的核心設備，具有高效精準、靈活適配、技術先進、安全可靠、操作便捷等特點，以下是詳細介紹：

As a core equipment in photovoltaic module production, the solar PV module fully automatic framing machine features high efficiency and precision, flexible adaptability, advanced technology, safety and reliability, and ease of operation. The details are as follows:

高效精準(High Efficiency and Precision)

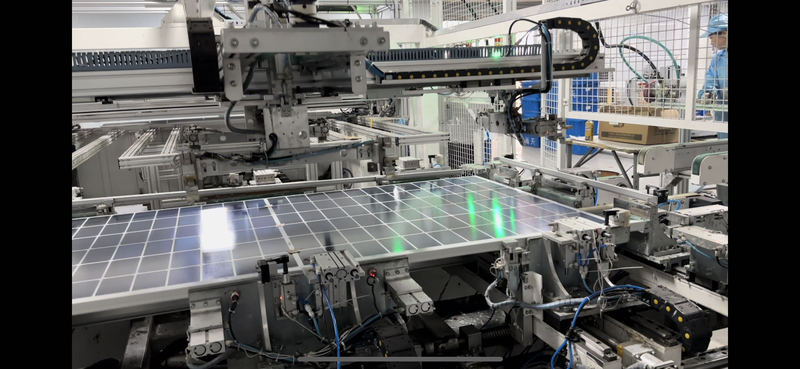

自動化傳輸與定位：全自動裝框機采用自動化傳輸系統，能夠快速、準確地將層壓后的光伏組件定位至組框中心位置，減少人工操作誤差，提高生產效率。

Automated conveying and positioning: The fully automatic framing machine uses an automated conveying system to quickly and accurately position the laminated PV module to the framing center, reducing manual operation errors and improving production efficiency.

高精度組框：設備內置伺服驅動系統與智能控制技術，組框精度可達±0.5mm，對邊尺寸之差≤1mm，對角線尺寸之差≤1.5mm，四角角度偏差±0.5°，確保組件邊框的密封性和結構強度。

High-precision framing: The equipment has built-in servo drive systems and intelligent control technology. Framing accuracy reaches ±0.5mm, difference between opposite sides ≤1mm, diagonal difference ≤1.5mm, corner angle deviation ±0.5°, ensuring the sealability and structural strength of the module frame.

快速組框：全自動裝框機能夠在短時間內完成組件的組框工序，單臺設備約2分鐘完成一個工作循環，支持3人操作（2人上料，1人操作設備），顯著提升生產效率。

Fast framing: The fully automatic framing machine can complete the module framing process in a short time. A single machine completes one work cycle in about 2 minutes, supporting operation by 3 people (2 for loading, 1 operating the machine), significantly improving production efficiency.

靈活適配(Flexible Adaptability)

多規格適配：設備支持多種組件規格的組裝，組件尺寸范圍廣泛，可適配2100×1200mm至800×800mm的組件，滿足多樣化生產需求。

Multi-specification adaptability: The equipment supports assembly of various module specifications. The component size range is wide, adaptable to modules from 2100×1200mm to 800×800mm, meeting diverse production needs.

型材兼容性：全自動裝框機適用于多種型材端面，包括有螺釘與無螺釘鋁合金邊框的組框，滿足不同客戶的需求。

Profile compatibility: Suitable for various profile end faces, including framing with and without screw holes for aluminum alloy frames, meeting different customer requirements.

參數可調：設備采用模塊化設計，組框和外形尺寸在設定的范圍內通過鎖緊齒條定位，可任意調整尺寸，并通過可調氣缸進行精度微調，滿足不同組框尺寸的要求。

Adjustable parameters: The equipment adopts modular design. Frame and overall dimensions can be arbitrarily adjusted within a set range via locking rack positioning, and precision fine-tuning is done via adjustable cylinders to meet different framing size requirements.

技術先進(Advanced Technology)

負壓吸附矯平：設備采用負壓吸附矯平技術，確保組件在組框過程中的平整度，避免組件變形或損壞。

Negative pressure adsorption leveling: Uses negative pressure adsorption leveling technology to ensure module flatness during the framing process, avoiding deformation or damage.

滾珠絲杠壓緊：長、短邊推板采用滾珠絲杠傳動壓緊，確保邊框與組件之間的緊密貼合，提高組框質量。

Ball screw pressing: Long and short side push plates use ball screw transmission for pressing, ensuring tight adhesion between the frame and the module, improving framing quality.

四角液壓壓平：設備配備四角液壓壓平裝置，對組件四個角進行同時壓平，確保邊框連接的牢固性和平整度。

Four-corner hydraulic flattening: Equipped with a four-corner hydraulic flattening device to simultaneously flatten the four corners of the module, ensuring the firmness and flatness of frame connections.

安全可靠(Safety and Reliability)

扭力保護機制：全自動裝框機具備扭力保護機制，可自動監測壓力超限并停機報警，避免組件在組框過程中受損。

Torque protection mechanism: Has a torque protection mechanism that automatically monitors pressure exceeding limits and stops the machine with an alarm, avoiding module damage during framing.

斷電斷氣保護：設備設有安全圍欄，并配備斷電、斷氣保護功能，確保操作人員的安全。

Power-off and air-break protection: The equipment has safety fences and is equipped with power-off and air-break protection functions to ensure operator safety.

防擠碎設計：設備采用可靠的防止擠碎電池板的獨特設計，通過調整各壓頭的初始狀態，使組框機的組框尺寸滿足待組裝太陽能電池板的外形尺寸，有效避免擠碎電池板。

Anti-crushing design: Employs a unique and reliable design to prevent crushing the panel. By adjusting the initial state of each pressure head, the framing size of the machine meets the dimensions of the solar panel to be assembled, effectively avoiding panel crushing.

操作便捷(Easy Operation)

智能控制：全自動裝框機采用觸摸屏或PLC自動控制，操作參數設定直觀，降低操作難度。

Intelligent control: Uses touch screen or PLC automatic control, with intuitive operation parameter setting, reducing operation difficulty.

一鍵操作：設備支持一鍵實現自動圖像矯正、檢測挑選等流水線生產操作，簡化操作流程，提高生產效率。

One-touch operation: Supports one-touch operations like automatic image correction, detection, and selection for production line operations, simplifying the process and improving efficiency.

維護方便：設備結構合理、剛性高、調整范圍大，便于日常維護和保養，降低設備故障率。

Easy maintenance: Reasonable structure, high rigidity, and large adjustment range facilitate daily maintenance and servicing, reducing equipment failure rate.
